搭建HUE，集成hdfs,Hive,MySQL

评论

本机环境：

  • hdfs伪分布式部署
  • 用户名：hadoop
  • hostname:hadoop001

一、环境准备

  1. Python

    • Python 2.7
    • Python 3.6+
    1
    2
    [root@hadoop001 local]# python -V
    Python 2.7.18

  2. database

    1
    2
    [hadoop@hadoop001 ~]$ mysql --version
    mysql  Ver 14.14 Distrib 5.7.11, for linux-glibc2.5 (x86_64) using  EditLine wrapper

  3. OS Packages

    1
    yum install ant asciidoc cyrus-sasl-devel cyrus-sasl-gssapi cyrus-sasl-plain gcc gcc-c++ krb5-devel libffi-devel libxml2-devel libxslt-devel make mysql mysql-devel openldap-devel python-devel sqlite-devel gmp-devel openssl-devel -y

  4. mvn

    1
    2
    3
    [hadoop@hadoop001 ~]$ mvn -v
    Apache Maven 3.8.3 (ff8e977a158738155dc465c6a97ffaf31982d739)
    Maven home: /home/hadoop/app/maven

  5. NodeJs

    NodeJs版本须为14.X版本

    https://nodejs.org/download/release/v14.18.3/

    https://www.cnblogs.com/dch0/p/14485924.html

    1
    2
    3
    4
    [root@hadoop001 glibc]# node -v
    v14.18.3
    [root@hadoop001 glibc]# npm -v
    8.3.1

  6. java

    1
    2
    3
    4
    [hadoop@hadoop001 ~]$ java -version
    java version "1.8.0_45"
    Java(TM) SE Runtime Environment (build 1.8.0_45-b14)
    Java HotSpot(TM) 64-Bit Server VM (build 25.45-b02, mixed mode)

二、安装

  1. 下载并解压

    下载地址：https://github.com/cloudera/hue

    1
    [hadoop@hadoop001 software]$ tar -zvxf hue-release-4.10.0.tar.gz

  2. 编译

    1
    2
    [hadoop@hadoop001 software]$ cd hue-release-4.10.0
    [hadoop@hadoop001 hue-release-4.10.0]$ PREFIX=/home/hadoop/software make install

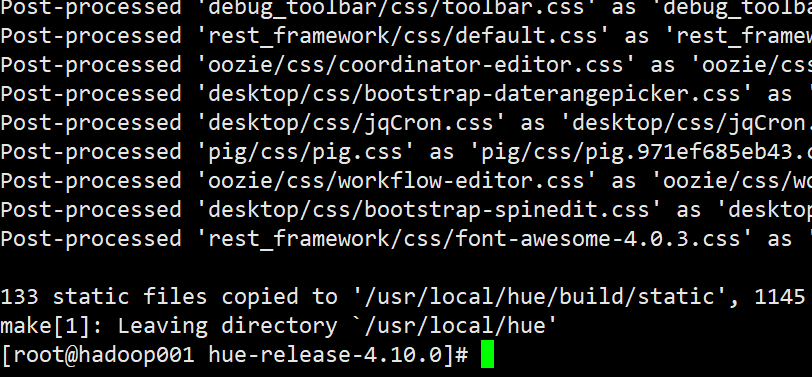

    image-20220116020513926

  3. 初始化配置

    hue.ini：

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    [desktop]
      # This is used for secure hashing in the session store.
      secret_key=jFE93j;2[290-eiw.KEiwN2s3['d;/.q[eIW^y#e=+Iei*@Mn<qW5o

      # Webserver listens on this address and port
      http_host=hadoop001
      http_port=8000

      # Time zone name
      time_zone=Asia/Shanghai

      #以下4项不设置，默认adminuser为hue，会在hue目录下创建hue:hue权限的文件，无权限操作
      # Webserver runs as this user
      server_user=hadoop
      server_group=hadoop

      # This should be the Hue admin and proxy user
      default_user=hadoop

      # This should be the hadoop cluster admin
      ## default_hdfs_superuser=hadoop


    [[database]]
      # Note for MariaDB use the 'mysql' engine.
      engine=mysql
      host=hadoop001
      port=3306
      user=root
      password=123456
      #保存hue信息的数据库名
      name=hue

    配置database这几个属性后，先在mysql中创建数据库hue

    1
    2
    mysql> CREATE DATABASE `hue` DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
    Query OK, 1 row affected (0.00 sec)

    然后执行命令生成元数据，

    1
    [hadoop@hadoop001 hue]$ ./build/env/bin/hue migrate

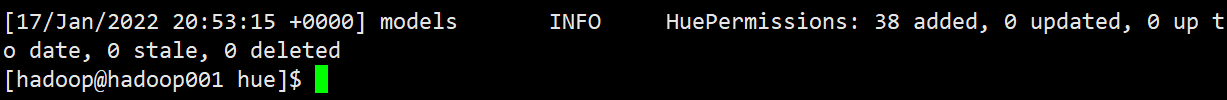

    创建成功：

    image-20220117205609227

    此时数据库hue下多了大量与hue信息相关的表。

  4. 启动hue，第一次访问

    1
    build/env/bin/supervisor

    浏览器访问http://hadoop001:8000/

    image-20220118010237926

    第一次访问，提示创建超级管理员帐号。

    我们这里创建：用户：hadoop(与hdfs用户同名)；密码：123456；

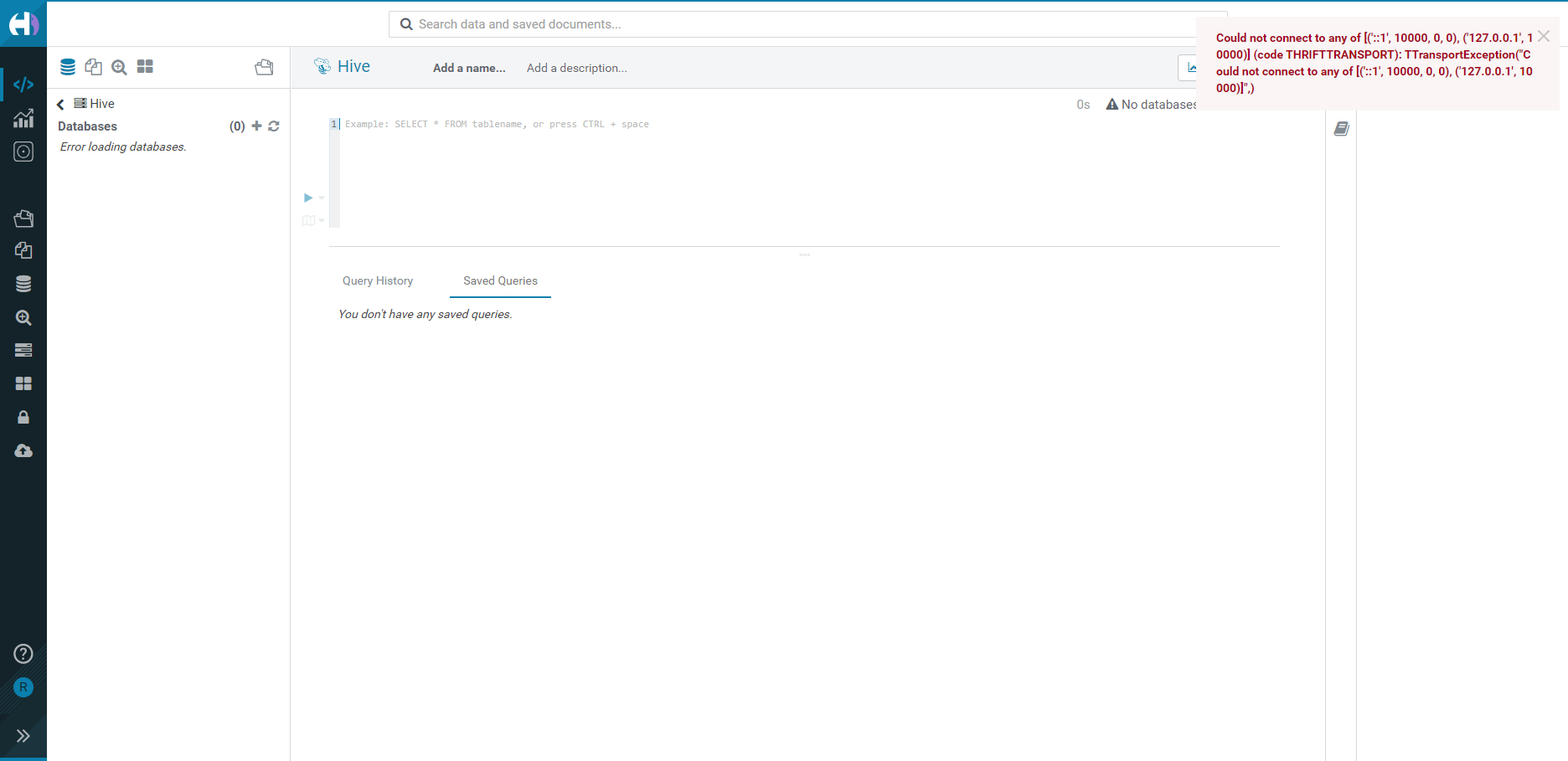

    成功访问hue页面：

    image-20220118010553020

三、集成hdfs

hue运行用户为hadoop

  • hue.ini

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    # 211 行。 没有安装 Solr，禁用，否则一直报错
    app_blacklist=search

    ##集成HDFS、YARN
    [[hdfs_clusters]]
        # HA support by using HttpFs

        [[[default]]]
    	  # 211 行。 没有安装 Solr，禁用，否则一直报错
    	  app_blacklist=search

          # Enter the filesystem uri
          fs_defaultfs=hdfs://hadoop001:9000

          # Use WebHdfs/HttpFs as the communication mechanism.
          # Domain should be the NameNode or HttpFs host.
          # Default port is 14000 for HttpFs.
          webhdfs_url=http://hadoop001:9870/webhdfs/v1

          # Directory of the Hadoop configuration
          ## hadoop_conf_dir=$HADOOP_CONF_DIR when set or '/etc/hadoop/conf'
          hadoop_conf_dir=$HADOOP_HOME/etc/hadoop

    [[yarn_clusters]]

      [[[default]]]
        # Enter the host on which you are running the ResourceManager
        resourcemanager_host=hadoop001

        # The port where the ResourceManager IPC listens on
        resourcemanager_port=8032

        # Whether to submit jobs to this cluster
        submit_to=True

        # URL of the ResourceManager API
        resourcemanager_api_url=http://hadoop001:8088

        # URL of the ProxyServer API
        ## proxy_api_url=http://hadoop001:8088

        # URL of the HistoryServer API
        history_server_api_url=http://hadoop001:19888

  • hdfs-site.xml

    1
    2
    3
    4
    5
    6
    7
    8
    9
    <!-- HUE -->
    <property>
      <name>dfs.webhdfs.enabled</name>
      <value>true</value>
    </property>
    <property>
      <name>dfs.permissions.enabled</name>
      <value>false</value>
    </property>

  • core-site.xml

    1
    2
    3
    4
    5
    6
    7
    8
    9
    <!-- HUE -->
    <property>
      <name>hadoop.proxyuser.hadoop.hosts</name>
      <value>*</value>
    </property>
    <property>
      <name>hadoop.proxyuser.hadoop.groups</name>
      <value>*</value>
    </property>

重启hdfs集群，启动hdfs，historyserver

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
[hadoop@hadoop001 ~]$ start-all.sh
WARNING: Attempting to start all Apache Hadoop daemons as hadoop in 10 seconds.
WARNING: This is not a recommended production deployment configuration.
WARNING: Use CTRL-C to abort.
Starting namenodes on [hadoop001]
Starting datanodes
Starting secondary namenodes [hadoop001]
2022-01-17 17:32:37,771 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
Starting resourcemanager
Starting nodemanagers
[hadoop@hadoop001 ~]$ mr-jobhistory-daemon.sh start historyserver
WARNING: Use of this script to start the MR JobHistory daemon is deprecated.
WARNING: Attempting to execute replacement "mapred --daemon start" instead.
[hadoop@hadoop001 ~]$ jps
12770 Jps
12537 JobHistoryServer
11706 SecondaryNameNode
11547 DataNode
11437 NameNode
11934 ResourceManager
12063 NodeManager

CART + C中止前端运行HUE，重启HUE。

在HUE上浏览hdfs，并对hdfs上的文件进行操作：

image-20220118015137535

四、集成Hive

如果需要配置hue与hive的集成，启动hue前需要启动hiveserver2和metastore服务。

hue.ini

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
[beeswax]

  # Host where HiveServer2 is running.
  # If Kerberos security is enabled, use fully-qualified domain name (FQDN).
  hive_server_host=hadoop001

  # Port where HiveServer2 Thrift server runs on.
  hive_server_port=10000

  # Hive configuration directory, where hive-site.xml is located
  hive_conf_dir=$HIVE_HOME/conf

  # Timeout in seconds for thrift calls to Hive service
  server_conn_timeout=120

  # Override the default desktop username and password of the hue user used for authentications with other services.
  # e.g. Used for LDAP/PAM pass-through authentication.
  auth_username=root
  auth_password=123456

[metastore]
  # Flag to turn on the new version of the create table wizard.
  enable_new_create_table=true

启动hiveserver2和metastore服务。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
[hadoop@hadoop001 hue]$ nohup hive --service metastore &
[1] 21686
[hadoop@hadoop001 hue]$ nohup: ignoring input and appending output to `nohup.out'

[hadoop@hadoop001 hue]$ nohup hive --service hiveserver2 &
[2] 21808
[hadoop@hadoop001 hue]$ nohup: ignoring input and appending output to `nohup.out'
[hadoop@hadoop001 hue]$ jps
21808 RunJar
16241 NameNode
17333 JobHistoryServer
21686 RunJar
16855 NodeManager
16504 SecondaryNameNode
21913 Jps
16729 ResourceManager
16348 DataNode
[hadoop@hadoop001 hue]$

启动hue

1
[hadoop@hadoop001 hue]$ build/env/bin/supervisor

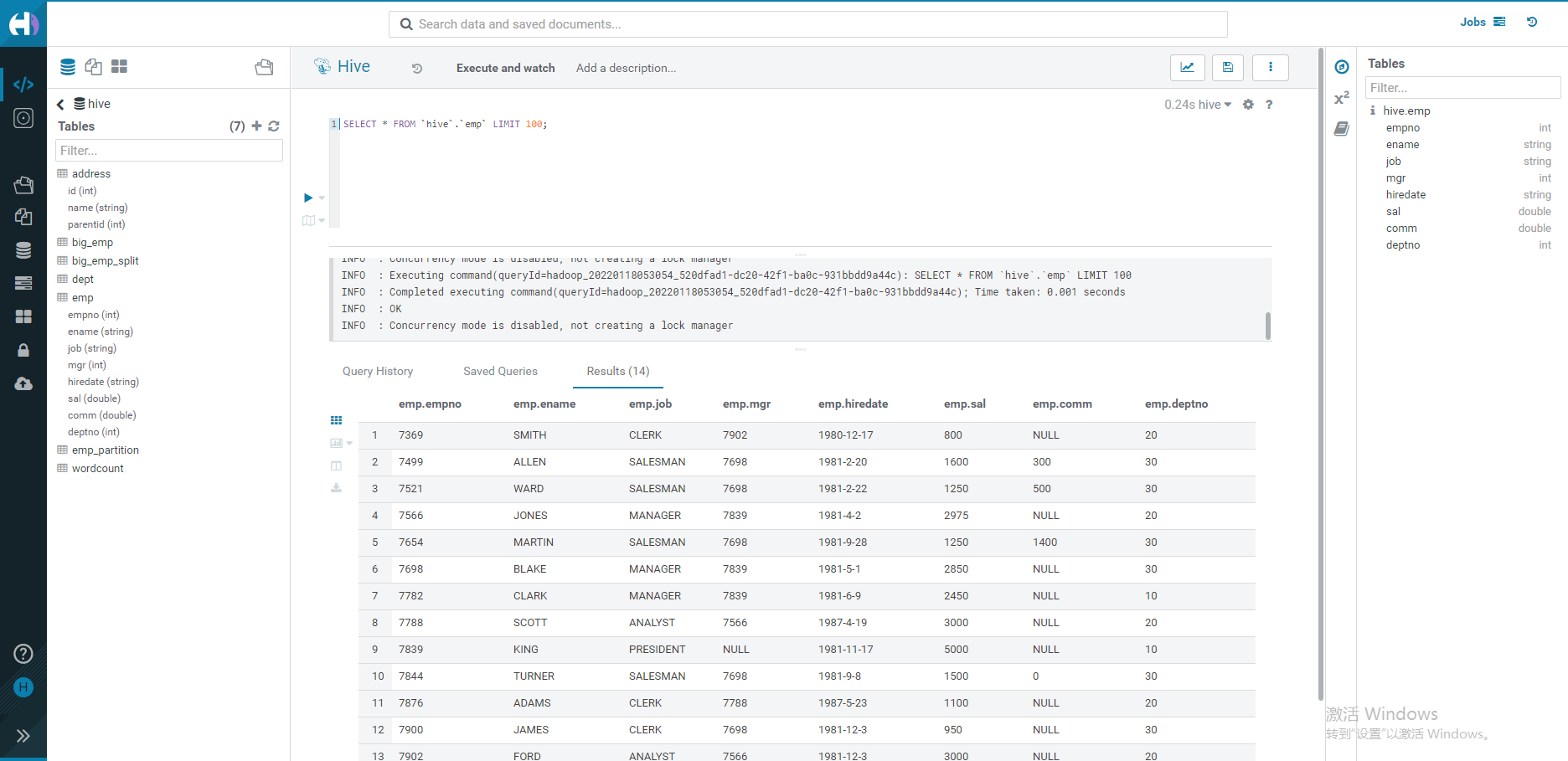

image-20220118133116380

五、集成MySQL

hue.ini:

1
2
3
4
5
6
7
8
9
10
11
[[[mysql]]]
   name = MySQL
   interface=sqlalchemy
#   ## https://docs.sqlalchemy.org/en/latest/dialects/mysql.html
   options='{"url": "mysql://root:ruozedata001@hadoop001:3306/hue"}'
#   ## options='{"url": "mysql://${USER}:${PASSWORD}@localhost:3306/hue"}'

##以下不添加，则只显示mysql，不显示hive
[[[hive]]]
  name=Hive
  interface=hiveserver2

image-20220118175343069

六、安装过程遇到问题

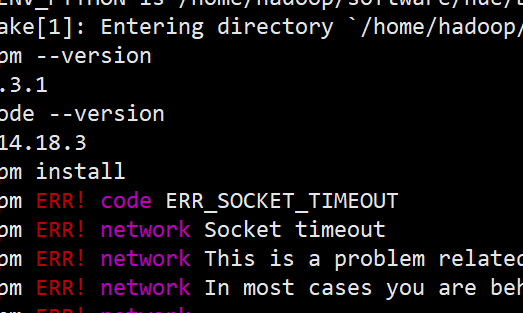

  1. 编译过程中，npm超时

    image-20220116012941045

    切换镜像源：npm config set registry http://registry.npm.taobao.org后解决。

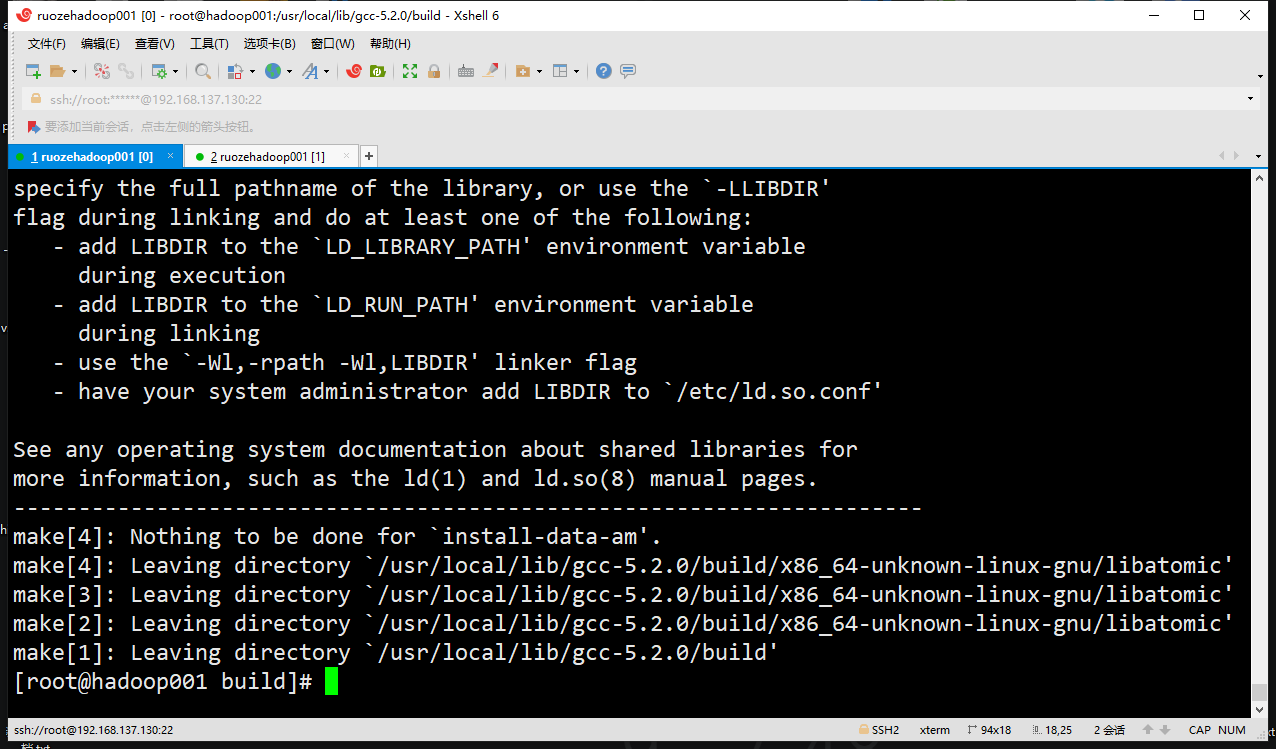

  2. gcc版本过低报错

    image-20220116032916057

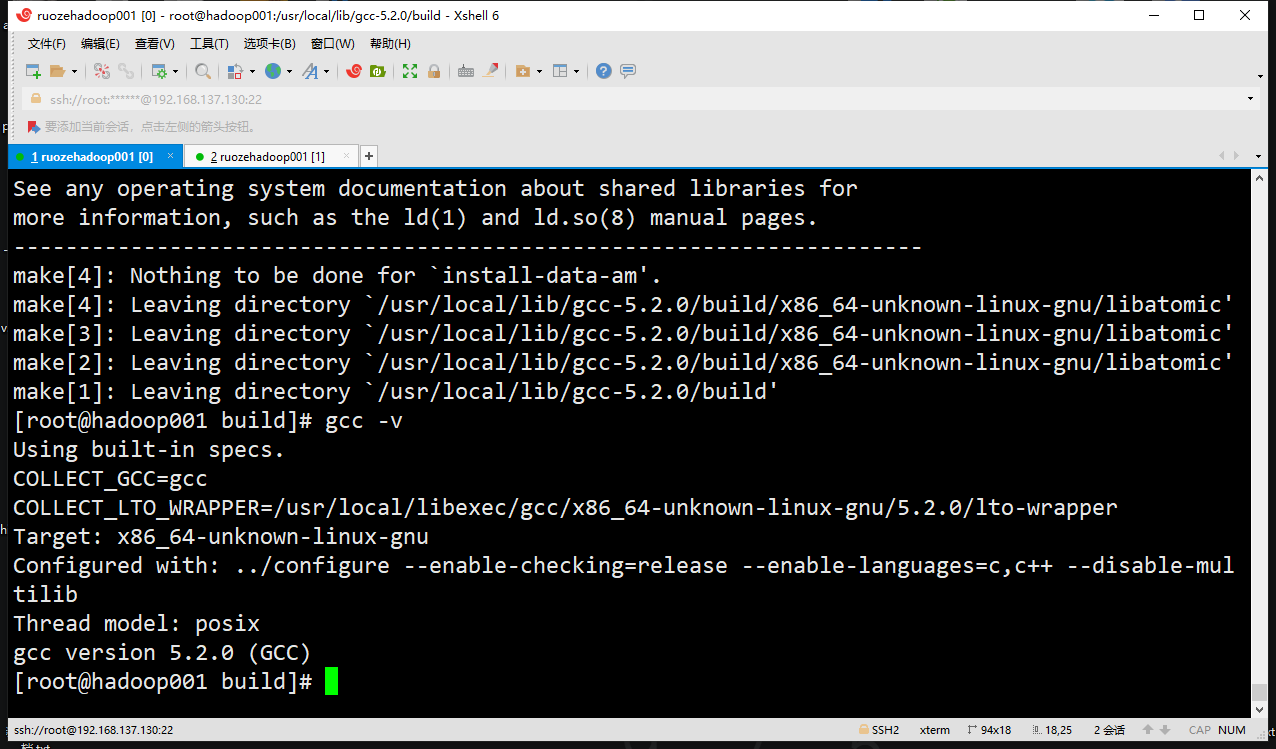

    升级了GCC版本

    image-20220116053308177image-20220116053335715

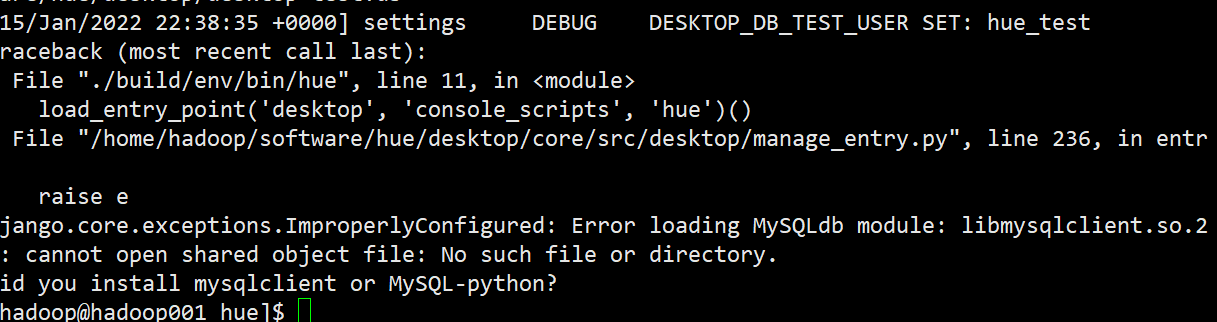

  3. mysqlclient or MySQL-python

    image-20220116071838895

    解决：

    https://pypi.org/project/mysqlclient/

    1
    sudo yum install python3-devel mysql-devel

    install mysqlclient via pip now:

    1
    pip install mysqlclient
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    [root@hadoop001 rh]# python get-pip.py
    DEPRECATION: Python 2.7 reached the end of its life on January 1st, 2020. Please upgrade your Python as Python 2.7 is no longer maintained. pip 21.0 will drop support for Python 2.7 in January 2021. More details about Python 2 support in pip can be found at https://pip.pypa.io/en/latest/development/release-process/#python-2-support pip 21.0 will remove support for this functionality.
    Collecting pip<21.0
      Using cached pip-20.3.4-py2.py3-none-any.whl (1.5 MB)
    Installing collected packages: pip
      Attempting uninstall: pip
        Found existing installation: pip 20.3.4
        Uninstalling pip-20.3.4:
          Successfully uninstalled pip-20.3.4
    Successfully installed pip-20.3.4
    [root@hadoop001 rh]# pip install mysqlclient
    DEPRECATION: Python 2.7 reached the end of its life on January 1st, 2020. Please upgrade your Python as Python 2.7 is no longer maintained. pip 21.0 will drop support for Python 2.7 in January 2021. More details about Python 2 support in pip can be found at https://pip.pypa.io/en/latest/development/release-process/#python-2-support pip 21.0 will remove support for this functionality.
    Collecting mysqlclient
      Downloading mysqlclient-1.4.6.tar.gz (85 kB)
         |████████████████████████████████| 85 kB 879 kB/s
    Building wheels for collected packages: mysqlclient
      Building wheel for mysqlclient (setup.py) ... done
      Created wheel for mysqlclient: filename=mysqlclient-1.4.6-cp27-cp27m-linux_x86_64.whl size=93309 sha256=e8a53d4de8684dfdda60179f73cfb2f8083b3e3051412cdd6d5263782befd504
      Stored in directory: /root/.cache/pip/wheels/04/5f/2b/e542c27913779611971f196081df58f969c742c01d93af1197
    Successfully built mysqlclient
    Installing collected packages: mysqlclient
    Successfully installed mysqlclient-1.4.6
